Infrared thermography

Identifying and rectifying equipment issues before they become problems is a critical part of averting loss and maintaining uninterrupted service. Routine inspections and preventive maintenance can reduce failures, but they cannot reliably identify trouble spots.

More than meets the eye

An infrared survey can help keep small issues from becoming disasters. Repairing a loose connection– easily found with a thermographic scan – might cost only $100. If undetected, that same connection could result in a fire. That might mean injury, loss of life or damage that makes the whole building unfit for occupancy and shuts your business down.

Thermographic scans are a wise investment. Industry sources show that the monetary savings they produce can be 20 times as much as the initial cost of the survey. This does not include the potential losses due to damage associated with fire.

How infrared thermography works

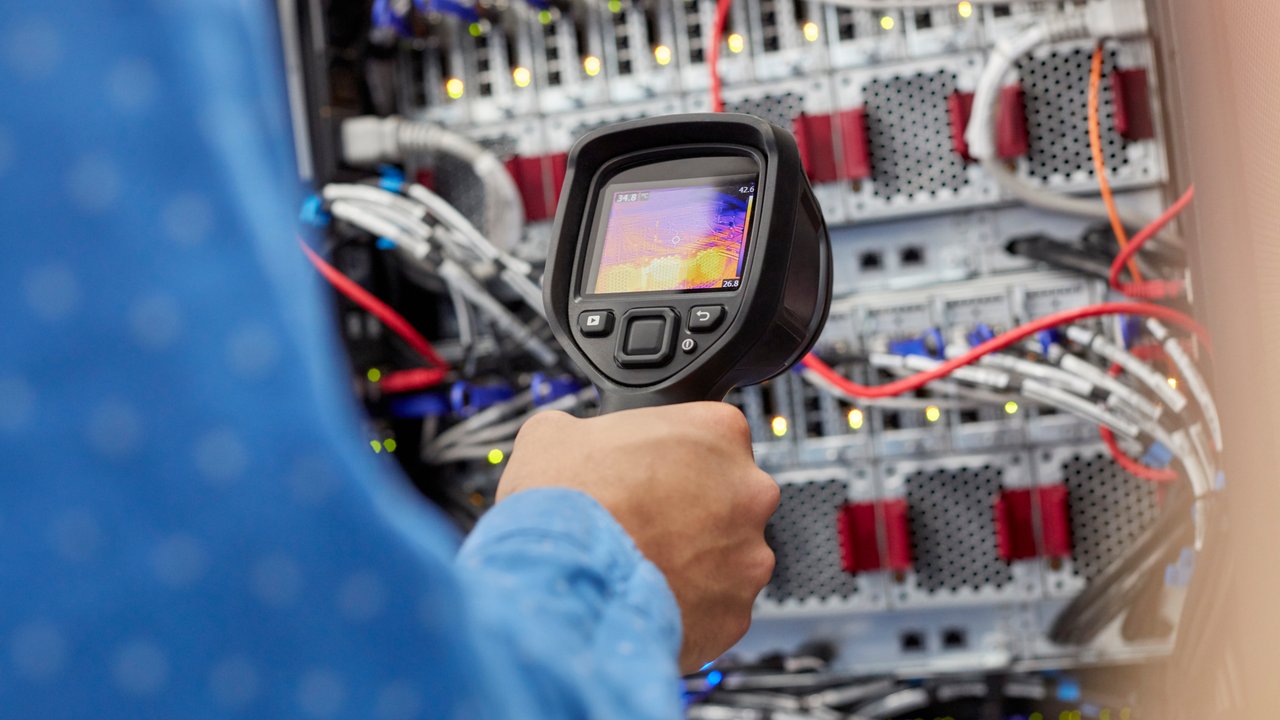

All electrical and mechanical equipment radiates heat. Infrared video cameras that are sensitive to this thermal radiation, detect and measure the temperature differences between surfaces. The cameras then convert the information and display it as an image visible to the human eye, allowing us to “see” a heat signature.

Abnormal or unexpected thermal patterns typically indicate a problem with the equipment, including conditions such as:

  • Loose electrical connections
  • Overloaded circuits or phases
  • Deteriorated or damaged insulation
  • Bearing failure
  • Insufficient lubrication
  • Steam leaks

These and other issues show up as hot spots that a trained professional can interpret to determine the likely cause and potential remedy.

Real-world examples of effective thermography surveys

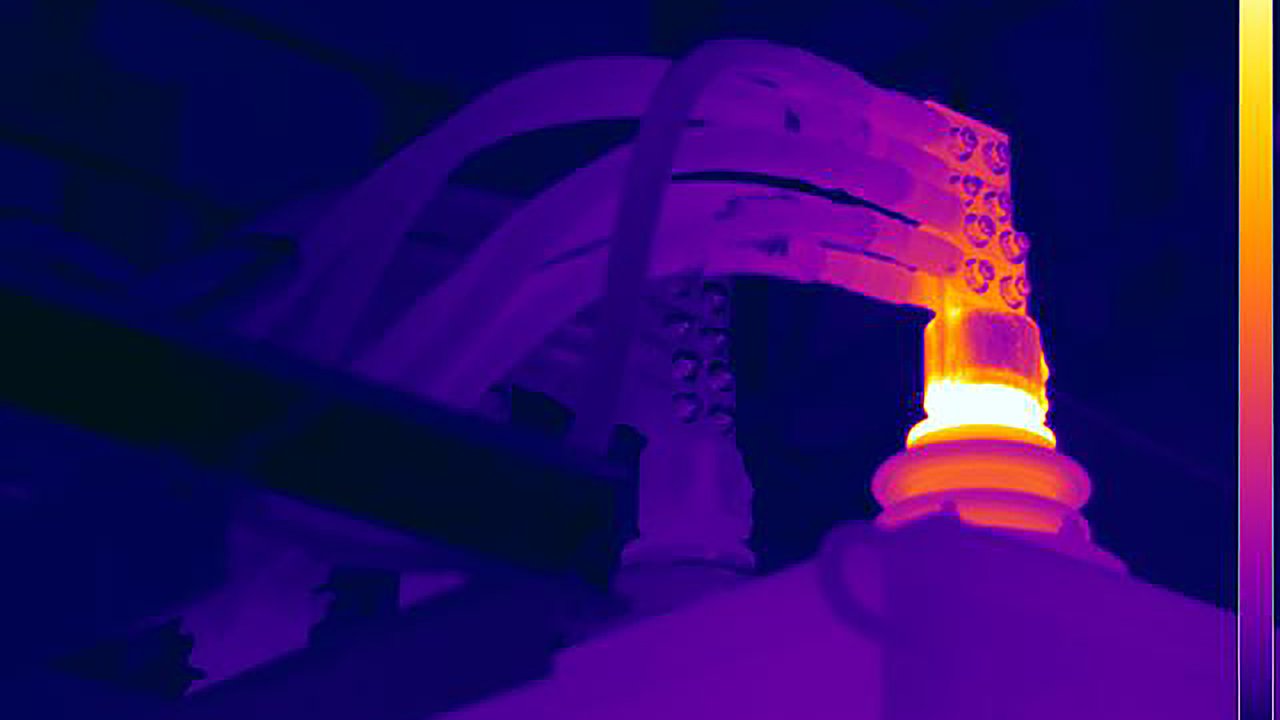

Transformer bushing - HSB thermography example

Overheated transformer bushing

This transformer experienced an internal problem that manifested itself as an overheated bushing. Within 24 hours, it was removed from service and the back-up unit was installed. This averted potential spoilage of millions of dollars in agricultural products.

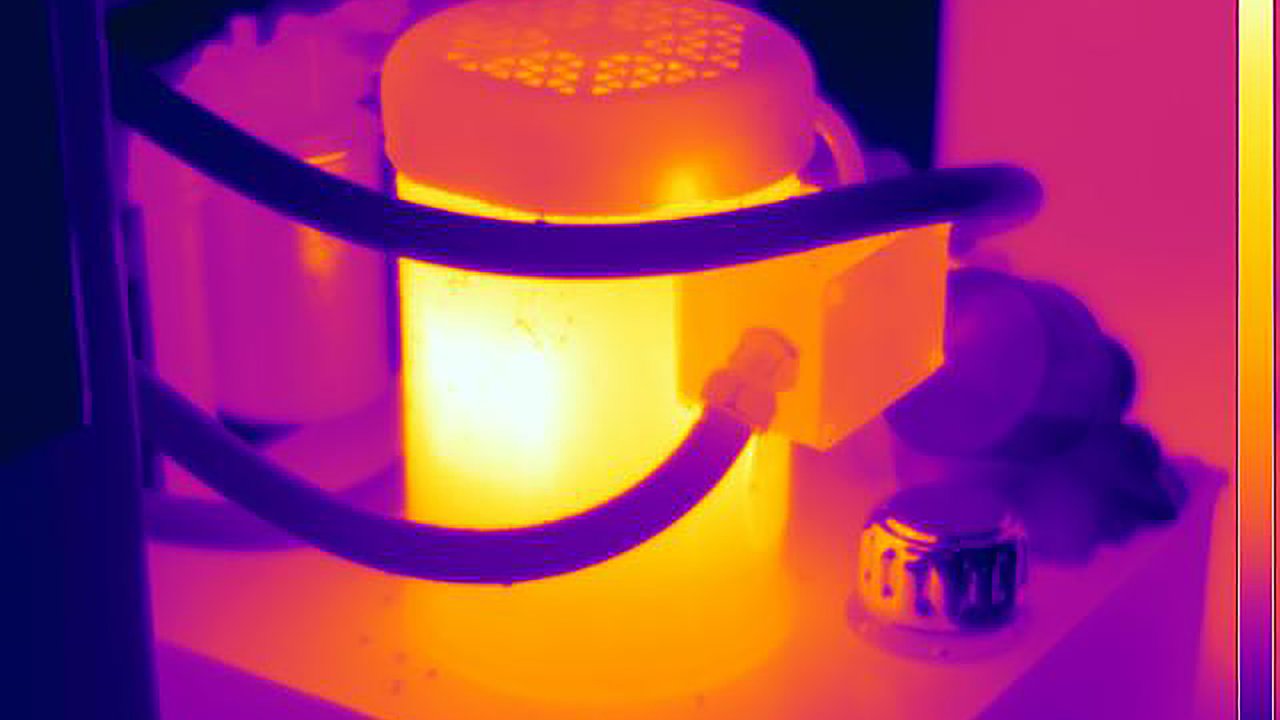

Motor bearing HSB thermography example

Under-lubricated motor bearing

This motor read 245 degrees F, which is more than 100 degrees above specifications. Upon examination, it was discovered that the lubrication was insufficient. Correcting the problem prevented failure of the motor.

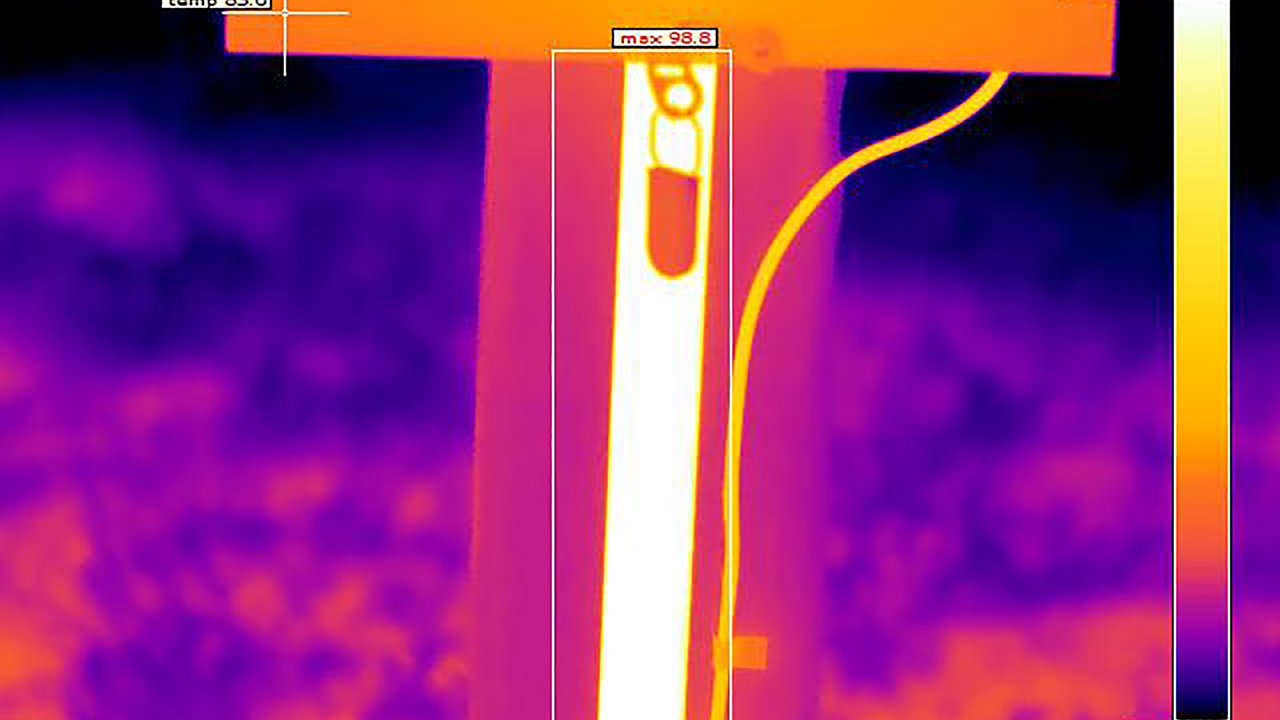

Thermography image of a hot meter

Hot meter

A small temperature rise could mean big money. An abnormal temperature rise on a conduit was detected. The local utility investigated and found the meter had been wired incorrectly at installation resulting in erroneous readings. This resulted in the local utility issuing a $60,000 credit to the facility for several years of incorrect meter readings.

Another innovative tool for your machine maintenance program

Compact Auguscope™ device has vibration and ultrasonic sensors.

Understanding the health of machines and their components is part of any company’s effective preventive maintenance program. Therefore, HSB includes vibration analysis of machinery in its thermography services.

Vibration analysis can detect such things as:

  • Mechanical looseness
  • Misalignment
  • Electrical issues
  • Imbalance

We use the compact, portable Auguscope™ - which uses vibration and ultrasonic sensors - to measure vibrations while machines are running. The data collected is sent immediately through computer program algorithms to compare it to past results, or results of other equipment.

The insights provided by the data are then analyzed by our trained engineers to determine the condition of the equipment, identify possible problems and their causes, and make recommendations to keep machinery operating safely and efficiently.

Get cost effective support for your facility’s predictive and preventive maintenance strategies. Sign up for HSB’s IR thermography and vibration analysis and check out our sample Thermography and Vibration Analysis Report below.

Note: Vibration analysis is included with infrared scans at no additional cost for HSB insureds; it is also available to third parties purchasing infrared services for an additional fee.
